FutureART PVC windows
FutureART PVC windows are created for passive buildings. FutureART PVC windows and doors reach A+ energy efficiency and keep perfect light transmission at the same time. Also FutureART PVC windows insulates sound from outside so it is a good choice for those people or organizations that are located in noisy areas.
What you should know about FutureART model?

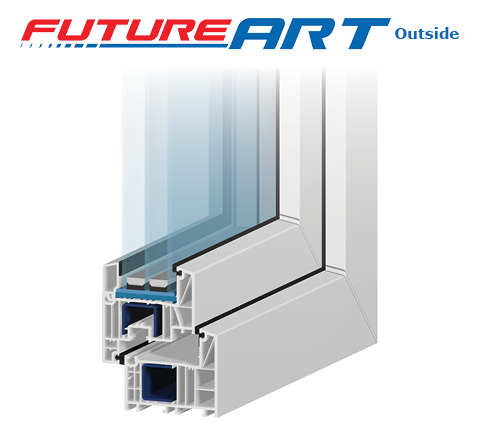

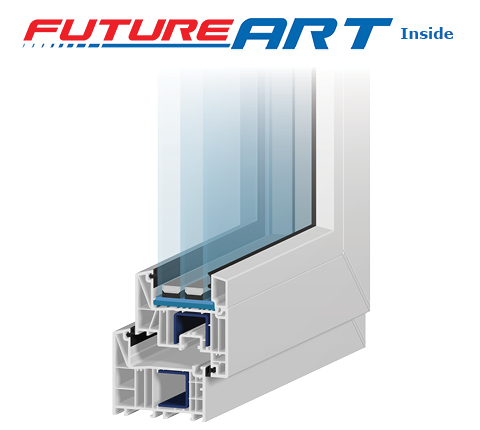

◆ The glass unit of this model is deepened into PVC profile 22 mm. Also, there is additional seal in centre of glass unit. This innovative solution ensures hermetic features for FutureART PVC windows and doors.
◆ PVC profile width is 82 mm. It contributes to maintaining A+ energy efficiency that is one of the requirements for energy efficient buildings. Also, this solution improves sound insulation.
Products that can be made of FutureART model:
◆ PVC windows;
◆ Inward opening balcony doors;
◆ Sliding doors;
◆ Entrance doors.
Technical parameters
| Standard complectation of FutureART | Additionally you can order: | |
| Profile | SALAMANDER bluEvolution 82 | – |
| Frame colour | White or one of „Standard“, „NatureLine“, „Special“ colours on the outside and outside/inside. | „Standard“, „NatureLine“, „Special“ colour from our colour palette. |
| Frame shape | Flat shape | – |
| Glazing beads | Flat shape | – |
| Rubber gaskets | Black colour rubber gaskets | – |
| UPVC frame width | 82mm | – |
| Quantity of chambers in frame/ in sash | 6/6 | – |
| Steel reinforcement | Galvanized steel profiles | – |
| Glazing | ◆ Made of 3 transparent glasses (width 48 mm), two of them – low emission glass; ◆ Gap filled with argon gas; |
◆ 3 layer glass units with ornament, reflective, toned or frosted glasses. ◆ Glass mullion glued on the glass or inside of the glass. ◆ Warm-edge spacer Swisspacer made of PVC. |
| Seals | Two seals, increased thickness, chamber structure with increased sound insulation | – |
| Bindings | ◆ SIEGENIA “Future SI-line” with anticorrosive cover “TitanSilber”; ◆ Protection in lower corner at the side of the handle. ◆ Hinges with teflon hubs; ◆ With white colour hinges cover. |
◆ Binding fittings such as brake in handle; ◆ Improved safety and anti-break-in bindings. ◆ Other colours hinges cover. |
| Ventilation | Micro-ventilation supplement | Ventilation supplements – gradual micro-ventilation, horizontal vents integrated into glass unit or milled into frame |
| Security | – | ◆ Handle protection against wrong turning when sash is turned or tilted; ◆ Balcony doors threshold with ALU protection. |
| Handles | White or brown colour, ALU. | Small external handles and pins for balcony doors, safe handles „Secustic“, lockable handles, colourful handles, handles with child safety functionality “Hoppe Kisi” |
|
|
|
|
|
|
|
