Connecting profiles
 Connective profile NP019 Purpose – to join two frames; Set includes: two NP019 PVC profiles; Recommended max length Lmax = 1700mm; Note: only white or brown colors. |
 Connective profile NP012 Purpose – to join two frames; Set includes: NP012 PVC profile and galvanized steel reinforcement; Recommended max length Lmax = 2100mm; |
 Connective profile NP013 Purpose- to join two fames; Set includes: PVC profile NP013, galvanized steel reinforcement VS013; Recommended max length Lmax = 2500mm; Note: used to join constructions of big length, recommended to install every 6 m. |
![NP014](/wp-content/uploads/2014/08/NP014.jpg") Connective profile NP014 Purpose – to join two frames; Set includes: PVC profiles NP014 & ZF211, galvanized steel reinforcement VS014; Recommended max length Lmax = 3000mm; |
 Connective profile NP016 (Hinge type) Purpose – to join two frames; Set includes: PVC profiles NP015 & NP016, galvanized steel reinforcement VS016; Recommended max length Lmax = 2500mm; Note: used to join constructions at an angle, minimum angle 90º |
 Connective profile NP010 (90º angle) Purpose – to join two frames at a 90º angle; Set includes: PVC profile NP010 galvanized steel reinforcement 91070815; Recommended max length Lmax = 2500mm; |
 Profile to widen NP112Purpose – to widen the frame at 12 mm; Set includes: PVC profile NP112. |

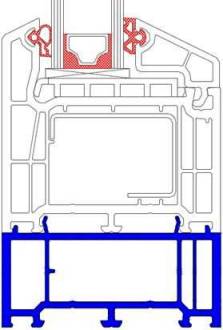

 Profile to widen NP130Purpose – to widen the frame at 30 mm; Set includes: PVC profile NP130. |
 Profile to widen NP150Purpose – to widen the frame at 50 mm; Set includes: PVC profile NP150. |

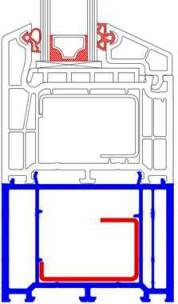

 Profile to widen NP150-1Purpose – to widen the frame at 50 mm; Set includes: PVC profile NP150, galvanized steel reinforcement VS102 |

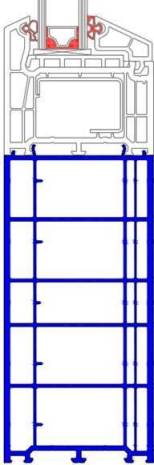

 Profile to widen NP330Purpose – to widen the frame at 150mm, Set includes: PVC profile NP330. |

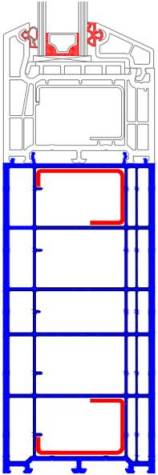

 Profile to widen NP330-1Purpose – to widen the frame at 150 mm; Set includes: PVC profile NP330, galvanized steel reinforcement VS102, 2 units. |
 Profile to widen NP031 Purpose – for interior and exterior windowsill’s installation; Set includes: PVC profile NP031. |
Please contact JSC “Aveplast” manager for further information. We are always ready to consult and help!
|
|
|
|
|
|
|
