Home Page | Our products | Aluminium products | Aluminium facades

02 Oct

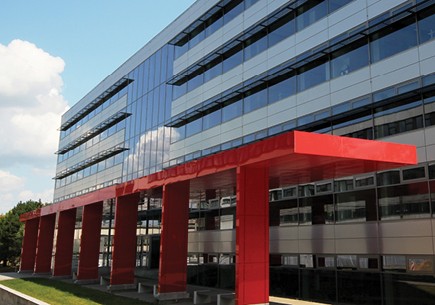

Aluminium facades

Aluminium facades“Aveplast” is one of the first companies which started its activity in aluminium facades design, manufacture and installation. During the 27 years of “Aveplast” activity, company constructed many aluminium facades of buildings, which became a part of their image.

Complex architectural project’s success depends on effective cooperation with partners. “Aveplast” has chosen Belgian company “Reynaers aluminum”, as the most experienced partner, which is one of the most well-known aluminium manufacturers in Europe and other countries. “Reynaers aluminum” may create a specific profiles, resolutions and improvements according to individual orders for both: formulation of new construction and improvements of already existing structures. “Aveplast” project engineers and developers constantly improve their qualification in “Reynaers aluminum” seminars. Consistent cooperation with the partners enables to ensure quality and flawless fulfillment.

Aluminium facades

Cw 50– for unlimited creative freedom and maximum entrance of light

CW 50 is a curtain wall facade and roof system that offers unlimited creative freedom and allows maximum entrance of light into the building. The system offers 11 individual styles with various outside appearances. Any combination of vertical and inclined planes are possible together with the integration of different types of vents. The extensive range offers technical solutions for the different performance requirements of a facade such as fire proof and high insulating solutions.
Interior visible width: 50 mm
Exterior visible width: 50 mm

PERFORMANCES
Thermal insulation Uf-value down to 0.8 W/m2K depending on the frame/vent combination
Acoustic performance Rw (C;Ctr) = 34 (-1;-4) dB / 55 (-2;-7) dB, depends on the glazing type
Air tightness Up to 600 Pa (class 4)
Water tightness Up to 900 Pa (class RE)
Wind load resistance Up to 2000 Pa
Anti-burglar WK 3 (windows-doors, doors and fixed waindows)

Please click on the picture to see entire opening.

56-60-86

–

CW 60 – Solution for heavy glass panes

CW 60 is a thermally improved curtain wall system for robust constructions of large glass surfaces, that answers even to the specific needs of sloped or curved constructions. CW 60 system allows to use glass panels that weight up to 450 kg.
The CW 60 system meets the highest requirements in water- and air tightness, wind load resistance and thermal insulation. It also offers the possibility to integrate triple glazing.
If CW 60 system is combined with other Reynaers systems, it makes CW 60 the perfect system for ultimate design freedom.
Interior visible width: 60 mm
Exterior visible width: 60 mm

PERFORMANCES
Thermal insulation Uf-value down to 0.8 W/m2K depending on the frame/vent combination
Acoustic performance Rw (C;Ctr) = 34 (-1;-4) dB / 47 (-2;-5) dB, depends on the glazing type
Air tightness Up to 600 Pa (class 4)
Water tightness Up to 1200 Pa (class RE)
Wind load resistance Up to 2400 Pa

Please click on the picture to see entire opening.

56-60-86

–

CW 86 – solution for large building projects

CW 86 system that complies with all requirements for large building projects. CW 86 enables cassette facades to be built using a traditional stick structure. It also enables unitized façades (CW 86-EF) to be completely pre-assembled in the workshop that results in a high execution speed on the building site. CW 86 is available in Structural Glazing (SG) and Cassette Glazing (CG). The system enables the automatization of opening elements such as top hung or parallel opening windows. Different types of windows, doors, sliding systems and brise soleil can be integrated. Different inner and outer colours are possible.
Interior visible width: 86 mm
Exterior visible width: 86 mm

PERFORMANCES
Thermal insulation Uf-value down to 1,5 W/m2K depending on the frame/vent combination
Acoustic performance Rw (C;Ctr) = 41 (-2;-5) dB, depends on the glazing type
Air tightness Up to 600 Pa (class 4)
Water tightness Up to 1050 Pa (class RE)
Wind load resistance Up to 2000 Pa

Please click on the picture to see entire opening.

56-60-86

–

We invite to see some of “Aveplast” fulfilled objects.

Please contact “Aveplast” manager for further information. We are always ready to consult and help!
