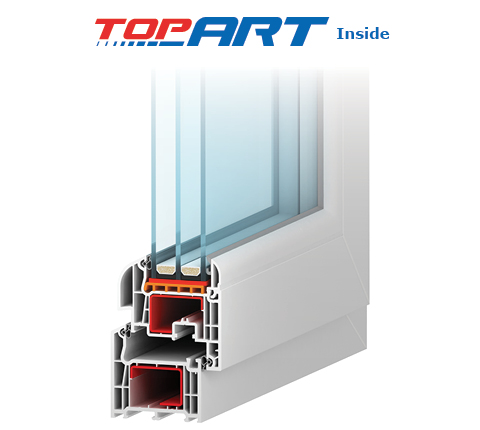

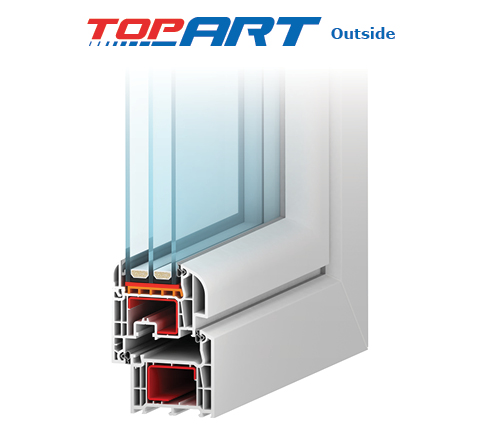

TopART PVC windows
TopART PVC windows have excellent technical characteristics and rounded lines. TopART PVC windows are perfect choise because a compatibility between functionality, heat insulation, noise isolation features and design. TopART PVC windows and doors reach A+ energy efficiency that is required for passive buildings.
◆ Unlike other models, TopART model has a surface which enables to avoid the damage of deep scratches. A brown laminate that imitates wood is glued onto a brown background and because of this solution the welds of PVC profiles are high quality.
◆ In addition, you can order improved safety bindings or anti-break-in bindings that reduces possibility of braking in.
◆ You can create modern comfort, if TopART windows are ordered with one of „NatureLine“ colors.
Products that can be made of TopART model:
◆ PVC windows;
◆ Inward opening terrace doors.
Technical parameters
| Standard complectation of TopART | Additionally you can order: | |
| Profile | SALAMANDER bluEvolution 73 | – |
| Frame color | White or one of „Standard“, „NatureLine“, „Special“ colors on the outside and outside/inside. | „Standard“, „NatureLine“, „Special“ color from our color palette. |
| Frame shape | Flat shape | – |
| Glazing beads | Rounded shape | – |
| Rubber gaskets | ◆ Grey color rubber gaskets if windows or doors are white color. ◆ Black color rubber gaskets if windows or doors are „Standard“, „NatureLine“, „Special“ color. |
– |
| PVC frame width | 73 mm (frame) / 84 mm (sash) | – |
| Quantity of chambers in frame/ in sash | 5/5 | – |
| Steel reinforcement | Galvanized steel profiles | – |
| Glazing | ◆ Made of 3 transparent glasses, two of them – low emission glass; ◆ Gap filled with argon gas; ◆ With Warm-edge spacer made of PVC. |
◆ 3 layer glass units with ornament, reflective, toned or frosted glasses. ◆ Glass mullion glued on the glass or inside of the glass. |
| Seals | Two seals, increased thickness, chamber structure with increased sound insulation | – |
| Bindings | ◆ SIEGENIA “Future SI-line” with anticorrosive cover “TitanSilber”; ◆ Hinges with teflon hubs; ◆ With white color hinges cover. |
◆ Binding fittings such as brake in handle; ◆ Improved safety and anti-break-in bindings; ◆ Other colors hinges cover. |
| Ventilation | Micro-ventilation supplment | Ventilation supplements – gradual micro-ventilation, horizontal vents integrated into glass unit or milled into frame |
| Security | – | ◆ Handle protection against wrong turning when sash is turned or tilted; ◆ Balcony doors threshold with ALU protection. |
| Handles | White color, coverd with PVC | Small external handles and pins for balcony doors, safe handles „Secustic“, lockable handles, colorful handles, handles with child safety functionality “Hoppe Kisi” |
Please contact “Aveplast” manager for further information. We are always ready to consult and help!
|
|
|
|
|
|
