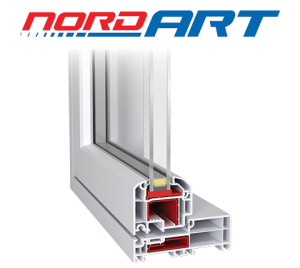

NordART PVC windows
NordART PVC windows are specially designed for Scandinavian living traditions. Exclusivity of these outward-opening windows is the great characteristics in case of strong wind.
What you should know about NordART model?
◆ Because of the outward-opening NordART model is used even in very small areas.
◆ Wide window frame greatly reduce humidity and molds formation inside in the windows.
◆ This model PVC windows can be opened in several ways: Top swing, Top hung, Side hung, Slide side hung.
Products that can be made of NordART model:
◆ PVC windows.
–
–
–
Please click on the picture to see entire opening.

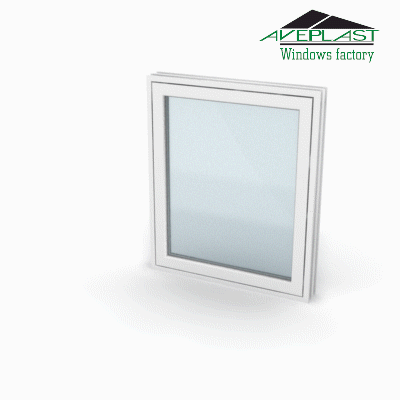

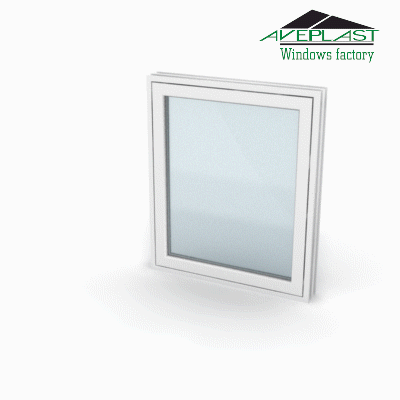

Top swing
Top Hung
Side Hung
Slide side hung
Technical parameters of outward opening PVC windows
| Standard complectation of NordART | Additionally you can order: | |
| Profile | Aluplast Nord-line | – |
| Frame colour | White | – |
| Frame shape | Rounded shape | – |
| Glazing beads | Rounded shape | Rounded shape in the case 3 layer glass unit is chosen |
| Rubber gaskets | Grey colour | – |
| UPVC frame width | 120 mm (frame) / 70 mm(sash) | – |
| Quantity of chambers in frame/ in sash | 5/4 | – |
| Steel reinforcement | Galvanized steel profiles | – |
| Glazing | ◆ Made of 2 transparent glasses, one of it – low emission glass; ◆ Gap filled with argon gas; ◆ With ALU frame |
◆ 2 layer or 3 layer glass units with ornament, reflective, toned or frosted glasses. ◆ Warm-edge spacer made of PVC ◆ Glass mullion glued on the glass or inside of the glass. |
| Seals | One seal, increased thickness, chamber structure with increased sound insulation | – |
| Bindings | System PN beslag: Secured with anticorrosive cover. | – |
| Ventilation | Installed “Projecting Top Hung” intermediate opening additive | – |
| Handles | Steel, silver colour. | – |
Please contact AVEPLAST manager for further information. We are always ready to consult and help!
|
|
|
|
|
|
|
